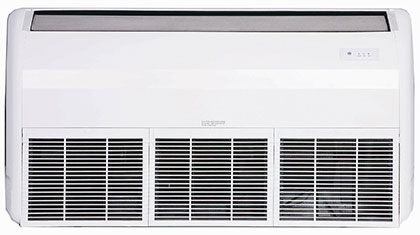

Ceiling&floor type air conditioner
Ceiling&floor type
| กก |
ceiling/floor type air conditioner |
| Model/Parameters |
กก |
12000btu |
18000btu |
24000btu |
36000btu |
42000btu |
48000btu |
60000btu |
| Refrigerant |
กก |
R-22 / R410a |
| Performance |
กก |
| Power supply(V/Ph/Hz) |
220V,50/60HZ |
220V,50/60HZ |
220V,50/60HZ |
380V/50HZ |
380V/50HZ |
380V/50HZ |
380V/50HZ |
| capacity |
Cooling |
Btu/h |
12000 |
17000 |
24000 |
34000 |
41000 |
48000 |
60000 |
| W |
3500 |
5000 |
7000 |
10000 |
12000 |
14000 |
17000 |
| Heating |
Btu/h |
13000 |
18000 |
26000 |
38000 |
44000 |
52000 |
61500 |
| W |
3800 |
5500 |
7700 |
11000 |
13000 |
15000 |
18000 |
| Noise |
Indoor |
dB(A) |
<46 |
<52 |
<52 |
<52 |
<55 |
<56 |
<58 |
| Outdoor |
dB(A) |
<52 |
<60 |
<60 |
<60 |
<65 |
<66 |
<66 |
| Air Circulation |
m3/h |
600 |
800 |
1200 |
1400 |
1900 |
1900 |
2300 |
| Suitalbe area |
m2 |
15~20 |
22~34 |
32~50 |
35~60 |
60~90 |
70~100 |
70~100 |
| Power |
| Input Power(T1/T3) |
Cooling |
W |
1250 |
1920 |
2600 |
3800 |
4500 |
5200 |
6300 |
| Heating |
W |
1250 |
1920 |
2600 |
3900 |
4500 |
5200 |
6300 |
| Rated Current |
Cooling |
A |
5.9 |
8.8 |
12.3 |
6.5 |
7.5 |
8.9 |
9.0 |
| Heating |
A |
5.9 |
8.8 |
12.3 |
6.7 |
7.5 |
8.9 |
9.2 |
| Dimension |
กก |
กก |
| Indoor unit |
Net |
mm |
905x673x243 |
905x673x243 |
1288x673x243 |
1288x673x243 |
1672x673x243 |
1672x673x243 |
1672x673x243 |
| Shipping |
mm |
995x765x311 |
995x765x311 |
1375x765x311 |
1375x765x311 |
1760กม765กม311 |
1760กม765กม311 |
1760กม765กม311 |
| Outdoor unit |
Net |
mm |
830x260x520 |
930x330x600 |
930x330x730 |
985x355x1030 |
985กม355กม1030 |
960กม360กม1300 |
960กม360กม1300 |
| Shipping |
mm |
890x360x590 |
995x390x650 |
1025x395x890 |
1105x435x1120 |
1105กม435กม1120 |
1080กม440กม1490 |
1080กม440กม1390 |
| weight |
กก |
กก |
| Indoor unit |
Net/shipping |
Kg |
25/28 |
30/33 |
40/43 |
40/43 |
45/49 |
45/49 |
45/49 |
| Outdoor unit |
Net/shipping |
Kg |
35/40 |
51/56 |
61/66 |
95/100 |
95/100 |
122/127 |
125/130 |
