R22 Split

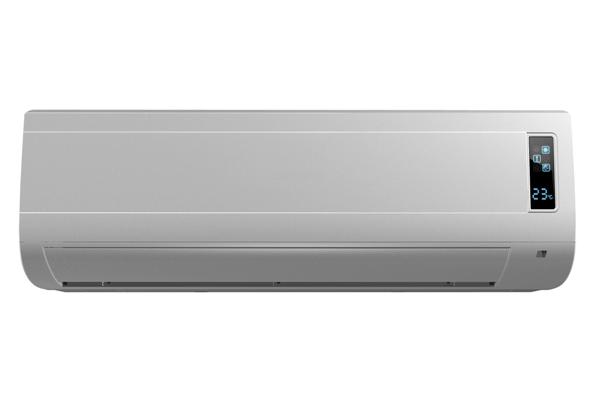

EQC model
| Model | 9000btu | 12000btu | 18000btu | 24000btu | 30000btu | 36000btu | |||
| Power supply | Ph-V-Hz | 220v/50hz, 220v/hz | 220v/50hz, 220v/hz | 220v/50hz, 220v/hz | 220v/50hz, 220v/hz | 220v/50hz, 220v/hz | 220v/50hz, 220v/hz | ||
| Cooling | Capacity | W | 2500 | 3200 | 5300 | 7000 | 8700 | 10000 | |
| Input | W | 980 | 1300 | 2020 | 2200 | 2900 | 3550 | ||
| Rated current | A | 4.5 | 5.9 | 8.8 | 9.5 | 13.8 | 16 | ||
| Heating | Capacity | W | 2600 | 3350 | 5300 | 7200 | 9000 | 10600 | |
| Input | W | 920 | 1250 | 1880 | 2100 | 2820 | 3600 | ||
| Rated current | A | 4.2 | 5.7 | 8.5 | 9.5 | 13.6 | 16 | ||
| Compressor | Type | ¡¡ | Hitachi | Toshiba | Toshiba | Hitachi | Hitachi | Hitachi | |
| Indoor unit | Indoor air flow (Hi/Mi/Lo) | m3/h | 450/400/320 | 500/450/380 | 850/700/650 | 1100/980/880 | 1200/1050/950 | 1200/1050/950 | |
| Noise level(Hi/Mi/Lo) | dB(A) | 38/35/34 | 40/37/34 | 43/40/37 | 50/46/43 | 52/48/45 | 53/50/47 | ||
| Unit dimension (W*H*D) | mm | 800*290*196 | 800*290*196 | 860x292x205 | 1080x330x220 | 1250x325x230 | 1250x325x230 | ||
| Packing (W*H*D) | mm | 870*365*280 | 870*365*280 | 930X365X280 | 1180x425x300 | 1320x415x325 | 1320x415x325 | ||
| Net weight | Kg | 10 | 10 | 12 | 15 | 17 | 18 | ||
| Gross weight | Kg | 11.5 | 11.5 | 14 | 20 | 21 | 22 | ||
| Outunit unit | Unit dimension (W*H*D) | mm | 600*480*250 | 700x540x255 | 770x520x280 | 845x680x310 | 880x790x360 | 880x790x360 | |
| Packing (W*H*D) | mm | 725*575*350 | 800x620x375 | 910X620X380 | 1010x765x430 | 1030x890x480 | 1030x890x480 | ||
| Net weight | Kg | 26 | 30 | 41 | 60 | 70 | 72 | ||
| Gross weight | Kg | 29 | 33.5 | 44.5 | 65 | 80 | 82 | ||
| Refrigerant type | ¡¡ | R22 | R22 | R22 | R22 | R22 | R22 | ||
| Application area | m2 | 10~15 | 14~21 | 20¡«28 | 19-38 | 26-46 | 35-55 | ||
| Qty¡¯per 20¡¯& 40¡¯&40HQ | Set | 141/298/338 | 103/220/254 | 92/196/222 | 60/128/143 | 43/92/111 | 43/92/111 | ||
