R22 Split

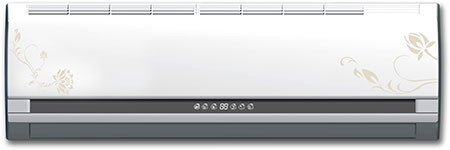

USF model
|
Model |
9000btu |
12000btu |
18000btu |
24000btu |
30000btu |
36000btu | ||
|
Power supply |
Ph-V-Hz |
220v/50hz, 220v/hz |
220v/50hz, 220v/hz |
220v/50hz, 220v/hz |
220v/50hz, 220v/hz |
220v/50hz, 220v/hz |
220v/50hz, 220v/hz | |
|
Cooling |
Capacity |
W |
2500 |
3200 |
5300 |
7000 |
8700 |
10000 |
|
Input |
W |
980 |
1300 |
2020 |
2200 |
2900 |
3550 | |
|
Rated current |
A |
4.5 |
5.9 |
8.8 |
9.5 |
13.8 |
16 | |
|
Heating |
Capacity |
W |
2600 |
3350 |
5300 |
7200 |
9000 |
10600 |
|
Input |
W |
920 |
1250 |
1880 |
2100 |
2820 |
3600 | |
|
Rated current |
A |
4.2 |
5.7 |
8.5 |
9.5 |
13.6 |
16 | |
|
Compressor |
Type |
|
|
Toshiba |
Toshiba |
|
|
|
|
Indoor unit |
Indoor air flow (Hi/Mi/Lo) |
m3/h |
450/400/320 |
500/450/380 |
850/700/650 |
1100/980/880 |
1200/1050/950 |
1200/1050/950 |
|
Noise level(Hi/Mi/Lo) |
dB(A) |
38/35/34 |
40/37/34 |
43/40/37 |
50/46/43 |
52/48/45 |
53/50/47 | |
|
Unit dimension (W*H*D) |
mm |
800*290*196 |
800*290*196 |
860x292x205 |
1080x330x220 |
1250x325x230 |
1250x325x230 | |
|
Packing (W*H*D) |
mm |
870*365*280 |
870*365*280 |
930X365X280 |
1180x425x300 |
1320x415x325 |
1320x415x325 | |
|
Net weight |
Kg |
10 |
10 |
12 |
15 |
17 |
18 | |
|
Gross weight |
Kg |
11.5 |
11.5 |
14 |
20 |
21 |
22 | |
|
Outunit unit |
Unit dimension (W*H*D) |
mm |
600*480*250 |
,, , ,
700x540x255 |
770x520x280 |
845x680x310 |
880x790x360 |
880x790x360 |
|
Packing (W*H*D) |
mm |
725*575*350 |
800x620x375 |
910X620X380 |
1010x765x430 |
1030x890x480 |
1030x890x480 | |
|
Net weight |
Kg |
26 |
30 |
41 |
60 |
70 |
72 | |
|
Gross weight |
Kg |
29 |
33.5 |
44.5 |
65 |
80 |
82 | |
|
Refrigerant type |
|
R22 |
R22 |
R22 |
R22 |
R22 |
R22 | |
|
Application area |
m2 |
10~15 |
14~21 |
20～28 |
19-38 |
26-46 |
35-55 | |
|
Qty’per 20’& 40’&40HQ |
Set |
141/298/338 |
103/220/254 |
92/196/222 |
60/128/143 |
43/92/111 |
43/92/111 | |
